ABA-120 – Fully –Auto Chemistry analyzer

QUICK OVERVIEW

Product Code: 1554
Brand: Biochemical Analyzer – Fully Automatic

ABA-120


Share this product on social networks

120 /Tests / Hour  , Double Reagent

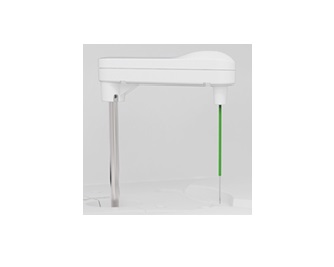

Multifunctional precision sampling probe

External & internal mirror polish, external & internal probe washing

Dedicated sampling probe equipped with sensitive liquid sensor, timely feedback of reagent & sample residuals

Collision protection, automatic probe depth adjusting




Excellent mixer design

Teflon coating mixer. No water dropping(reducing carry-over)

Excellent mixing effect with standard mixing prosedure

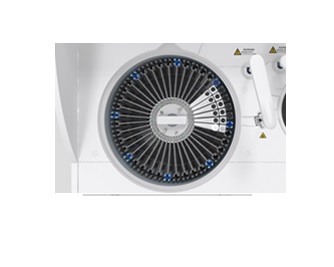

Reagent tray & Sample tray;

80 reagent positions,40 sample positions

Non-stop cooling system with peltier pad inside, 24 hours 2℃-14℃

Bar code reader(optional)

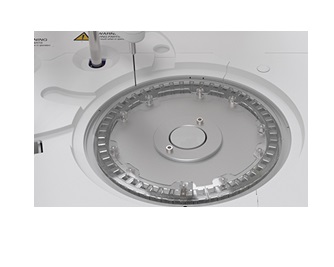

Reaction tray

44 reaction cuvettes

Reaction volume as low as 150μl

Stable & accurate temperature (37±0.1℃)for reaction

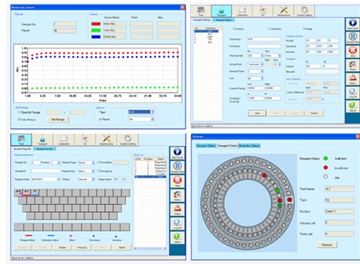

Advanced operating system

User friendly software interface simple, easy-to-operation

Sample automatic dilution(decrease, increase, normal)

Reaction result automatic checking and warning, calibaration result automatic checking, warning alarm log

Linear & nonlinear calibration, Multi-points calibration up to 8 points

Quality control apply to westgard, L-T plot, cumulative

TECHNICAL SPECIFICATION

Instrument type

discrete

Test speed

120T/H

Analytical methods

end point method, fixed time method, dynamic method

Measurement wavelength

340-630nm 6 wavelengths

Light source

monochromatic light cold light source

    Reaction position

40 cuvettes

    Reaction temperature

37±0.1

Sample position

31

Sample volume

5-50μl

Reagent position

16 reagent positions (double reagent), the entirereagent tray can be taken out, expand  the reagent bit

Reagent volume(one test)

150-400μl

Reagent needle

with liquid level detection, crash safety protection

Repeatability

CV≤2%

Sample loading

STAT available and sample continuous loading

        Calibration

linear, non-linear

Quality control management

quality control chart can be stored,displayed and printed.

Software

Windows, easy to operate

Print function

a variety of print formats to choose

Power supply

AC 100-240V, 50/60Hz, 102W

Weight

13Kg

Size

468mm*270mm*290mm
