Description

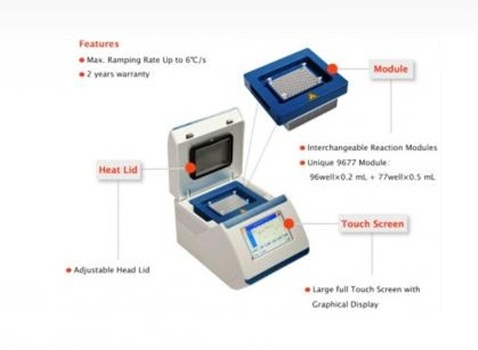

Features
• Large full Touch Screen with Graphical Display
• Max. Ramping Rate Up to 6°C/s
• 2 years warranty
• Large full Touch Screen with Graphical Display
• Interchangeable Reaction Modules
• Adjustable Head Lid
TC96G( PCR THERMAL CYCLER)
TECHNICAL SPECIFICATION
| Capacity |
96×0.2mL |
| Max. Ramping Rate |
6°C/s (CF-F9677) |
| Max. Cooling Rate |
5°C/s (CF-F9677) |
| Module Temperature Range |
0°C~100°C |
| Module Temperature evenness |
≤±0.2°C(at 95°C) |
| Module Temperature precision |
Modu≤±0.2°C(35°C ~ 100°C) |
| Display precision |
0.1°C |
| Gradient Temperature evenness |
≤±0.3°C(at 95°C) |
| Gradient Temperature precision |
≤±0.3°C(35°C~100°C) |
| Gradient Temperature Range |
30°C ~ 99.9°C |
| Gradient Temperature Distribution |
12 line (vertical) |
| Heat Lid Temperature: |
30°C~112°C(adjustable) |
| Number of Stored programs
Number of protocols |
Max.15,000 (downloadable via flash disk) Max. 30(feasible for multinest cycling) |
| Max. number of standard cycles |
100(up to 60000 in nest cycling) |
| Time increase/decrease |
1 ~ 120s,(feasible for Long PCR) |
| Temperature increase/decrease |
0.1 ~ 10.0°C(feasible for Touchdown PCR) |
| Temperature changing rate adjustable |
yes |
| Wide voltage range |
85V ~ 265V |
| Power: Max |
Max. 600W |
| Dimensions: |
362 x 256 x 255 mm |
| Net weight |
7.3 kg |
