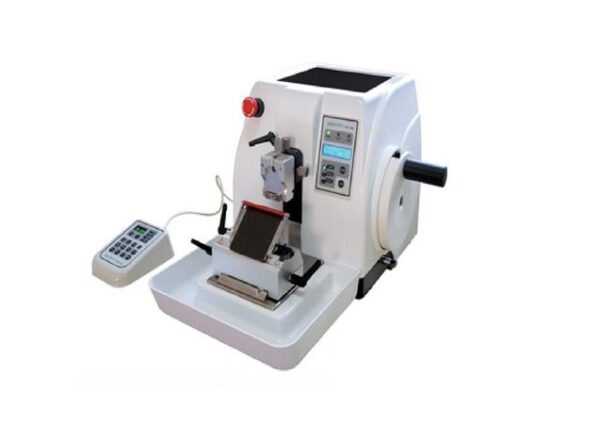

FAM48 with separate control panel

QUICK OVERVIEW

Product Code: 680
Brand:Microtome Fully-automatic
FAM48

Share this product on social networks

Features:

• The casing of microtome is amde from fire-retsrdant ABS palstic with streamlined design .

•Spacious and ingenious waste tray.

•Advanced retraction function makes better sectioning. The retraction value is also adjustable .

•Universal and fast specimen holders fits international embedding cassettes.

•Handwheel locking may be activated at any position and improve operation safety standard .

•The electric coarse feed operates two speeds which is easy to record the feed.

•Separated control panel is much easier to operate.

•Three motorized sectioning modes (Cont, Single and Step) are available for user to select .

•Automatic memorized coarse feed and reload function can significantly improve cutting efficiency

TECHNICAL SPECIFICATION

Section thickness 0 to 600µm

0 to 2µm,0.5µm increments

2 to 10µm,1µm increment

10 to 20µm,2µm increments

20 to 100µm,5µm increments

100 to 600µm,50µm increments

Trimming thickness 0 to 600µm

0.5 to 2µm,0.5µm increments

2 to 10µm,1µm increment

10 to 20µm,2µm increments

20 to 100µm,5µm increments

100 to 600µm,50µm increments



Retraction thickness 5-100µm, 5µm increments (can deactivate)
Maximum specimen 40x50x30mm,or standard cassette
Specimen horizontal feed 28m
Specimen vertical feed 70mm
Specimen holder adjusted system Horizontal orientation: ±8°

Vertical orientation:  ±8°

Repositioning of knife holder base ,(left-right) 50mm
Electric Coarse Feed Speed  300µm/s (Slow)  and  900µm/s (Quick)
Cutting speed 5 grades

1st:100~164mm/s,

2nd:164~228mm/s,

3rd:228~292mm/s,

4th:292~356mm/s,

5th:356~420mm/s

Dimension: Length:550mm,

Width:410mm ,(without handwheel,310mm)

Height:320mm ,

Weight  about 39 kg
