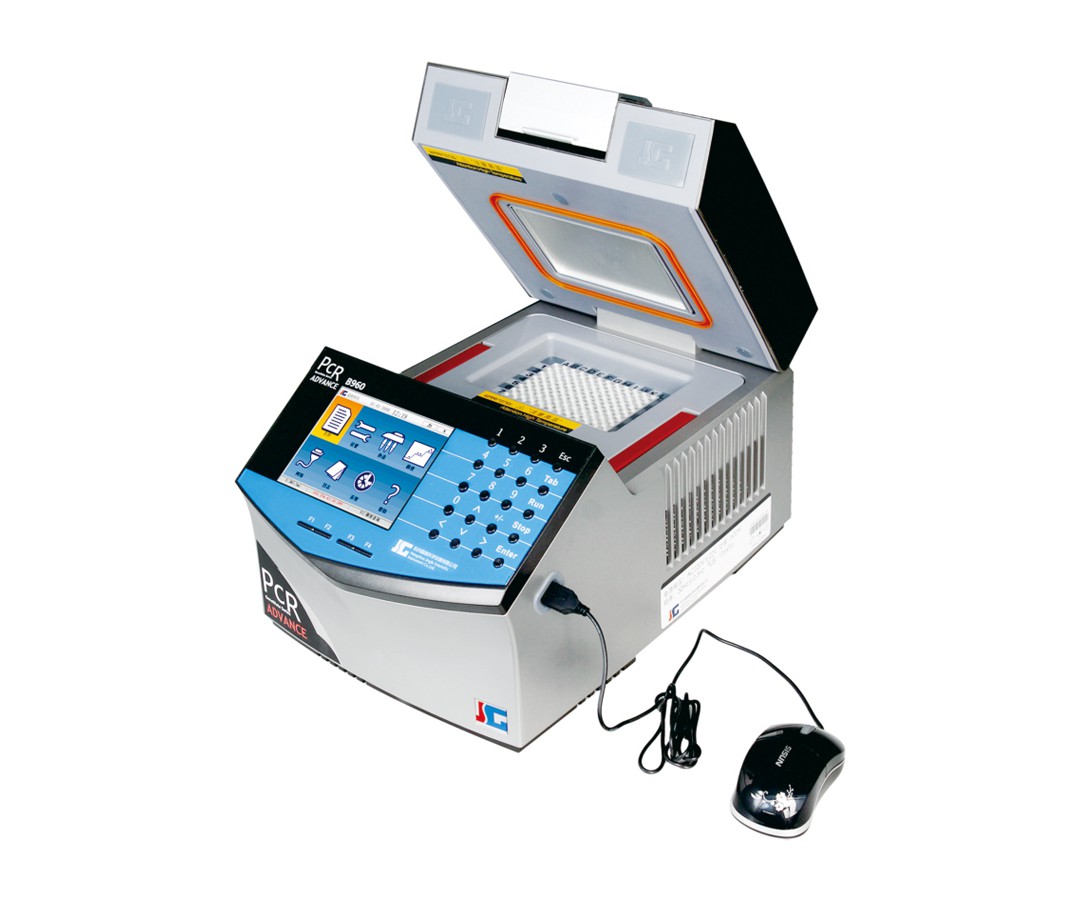

TC96B( PCR THERMAL CYCLER)

QUICK OVERVIEW

Product Code:243
Brand: PCR THERMAL CYCLER
TC96B

Share this product on social networks

Feature :
Convenient and flexible module replacementmode
Sealed sample design for low temperaturepreservation, clean and dry .
Two-stage hot lid pressure regulator,ensures good sealing performance.
Gold-plated or silver-plated module,improves the efficiency of heatconduction,makes theexperiment more effective.
Large size and color super-high-definitionLCD screen.
Intuitive and user-friendly interface,makes programming quick and easy.

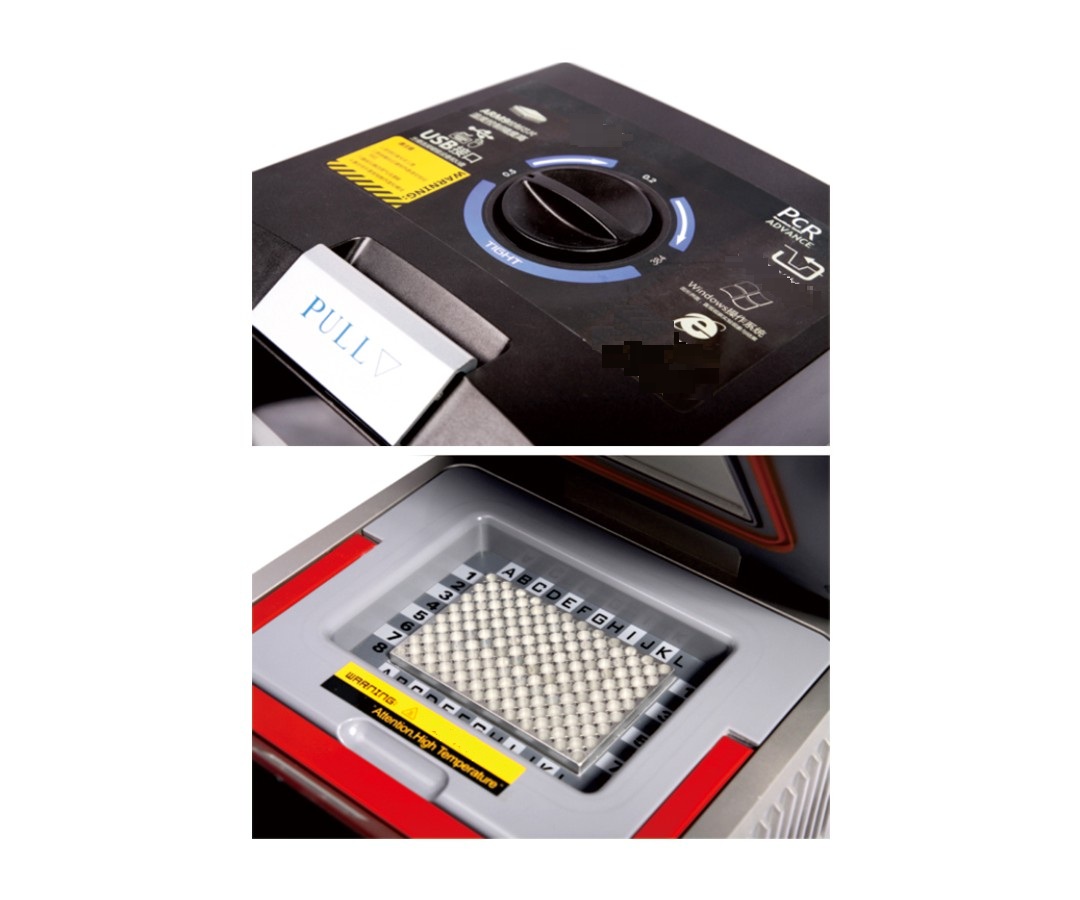

Infinitely adjustable lid knob, suitablefor various types of the tube.
Memory function in case of power-down.
Low noise, low energy consumption, longapplication life.
Heated lid could be stopped at any angle.
Metal material lid, more reliable and safe.
Hard disk and mouse can be linked.
Linked with PC for its multiple control.
Windows operating system.
Convenient, free-charge program upgraded.
Long distance trouble judgment.
Achieve Circulation nesting.
110-220V international general voltage.

TECHNICAL SPECIFICATION

 Parameter :

Capacity 96×0.2mL(A);54×0.5mL(B);96×0.2mL+77×0.5mL(C);384well(D)
Temp range  0℃~99℃(Rt≤30℃)
Max heating rate  ≥4.5℃/s
Max cooling rate ≥4℃/s
Heating/cooling rate 0.1℃/s—4℃/s(Adjustable)
Uniformity  ≤±0.2℃
Accuracy ≤±0.1℃
Gradient temp range  30~99℃
Gradient spread 1~30℃
Gradient Uniformity  ≤0.2℃
Heated lid temp 20~110℃
Environment model  automatic identification
Temp control  block,tube(10~100μl can be used),calculated
Stored program No.  1000
Max. No. of cycle  999
Display  5.7’LCD
Communication USB2.0 、Rs232、RJ45
Size  380mm(L)x270mm(W)x250mm(H)
Weight 7.8kg
