SAM45 – Microtome Semi-automatic

QUICK OVERVIEW

Product Code:677
Brand:Microtome Semi-automatic
SAM45

Share this product on social networks

Features:

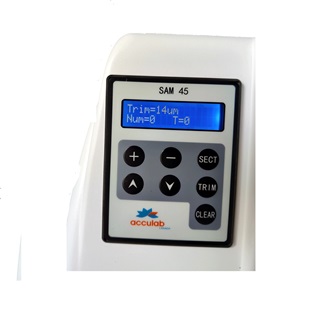

• Display monitors a range of functions including section thickness, trimming, section counter. Separated control      panel is easy to operate.

•Spacious magnetized waste tray.

•Light Balance handwheel with ergonomic concept design.

•Specimen Clamp with adjustable function could easily parallel the block and knife on X-Y orientation.

•Retraction function effectively avoid the specimen against the blade when it’s turning around.

•Universal specimen holder fits international standard cassette.

•Handwheel locking may be activated at any position to protect specimen and improve operation safety standard .

TECHNICAL SPECIFICATION

section thickness 0 to 600µm

0 to 2µm,0.5µm increment

2 to 10µm,1µm increment

10 to 20µm,2µm increments

20 to 100µm,5µm increments

100 to 600µm,50µm increments

trimming thickness 0 to 600µm

0 to 2µm,0.5µm increments

2 to 10µm,1µm increment

10 to 20µm,2µm increments

20 to 100µm,5µm increments

100 to 600µm,50µm increments

retraction thickness 20µm
specimen horizontal feed 28mm
specimen vertical feed 70mm
maximum specimen 40X50X30mm, or standard cassette
specimen holder adjusted system Horizontal orientation:±8°

Vertical orientation:  ±8°

repositioning of knife holder base :(left-right) 50mm
Eletric coarse feed speed available 750µm/s


dimensions

length:550mm

Width:410mm ,(without handwheel,310mm),

Height:320mm

weight: about 36 KG weight: about 36 KG
