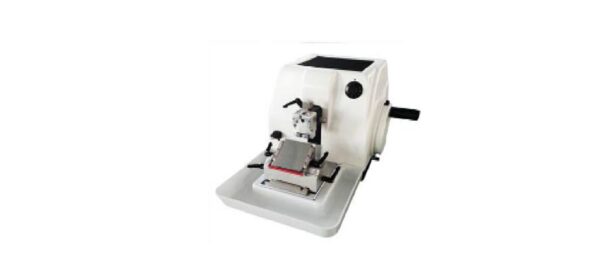

MRM40- Manual Rotary

QUICK OVERVIEW

Product Code:675

Brand:Microtome Rotary

MRM40

PRINT CATALOGUE

SEND ENQUIRY

Share this product on social networks

Features

Spacious magnetized section wastr tray ,Ergo-handwheel handle

Convenient storage area on top of instruments ,Disposable blade holder with intergraded satety finger protection guard

Two handwheel locks :handwheel can be locked at any position,Distortion – resistant base plate ensures optimum overall stability,Both low&high profile disposable blade are usable

Two types of specimen clamp ;standard specimen clamp and “C” type specimen clamp

Retraction function :220µm,could be turned on \off

Extremely smooth running force compensation system

TECHNICAL SPECIFICATION

Section thicknes setting	0 µm ~ 60 µm adjustable 0 µm ~ 2 µm ,in 0.5 µm increments 2 µm ~ 10 µm ,in 1 µm increments 10 µm ~ 20 µm ,in 2 µm increments 20 µm ~ 60 µm ,in 5 µm increments
Trimming thickness	10 ~ 50 µm adjustable
Retraction range	220 µm , could be turned off
Maximum specimen size	50 x60 x40 mm or standard cassette
Specimen vertical stroke	70 mm
Specimen horizontal stroke	30 mm
Specimen holder adjusted system	horizontal orientation :±8° vertical orientation :±8°
Blades holder base reposition (left – right )	50 mm
Dimensions	width :460mm (320mm withouthandwheel) Depth :550mm Height ;300mm
Weight	about 42 KG
1unit/1 plywood case size	564846cm
N.W:42kgs G.W: 50kgs
