ABA-400 Auto Chemistry Analyzer ( Open system)

QUICK OVERVIEW

Product Code: 652
Brand: Biochemical Analyzer – Automatic

ABA-400 ( open system)


Share this product on social networks

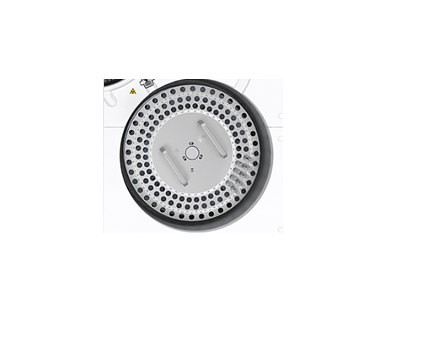

O Sample/Reagent tray

  • 120 sample posit
  • ion
  • 90 reagent position
  • Reagent refrigerated function

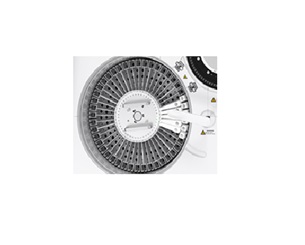

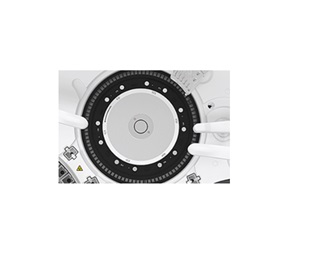

O Reaction tray

  • 90 reusable cuvettes
  • Automatic blank testing for cuvettes
  • Colorimetry system of the pattern of light splitting behind cuvettes
  • Dismountable, easily replacement
  • Reaction temperature 37℃,constant temperature function

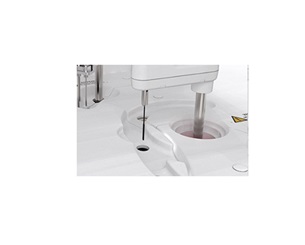

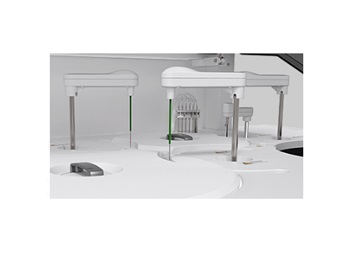

O Sample/Reagent Probe

  • Automatic liquid level detecting
  • Collision protection function
  • Probe internal/external washing
  • Probe deepth automatic adjustment

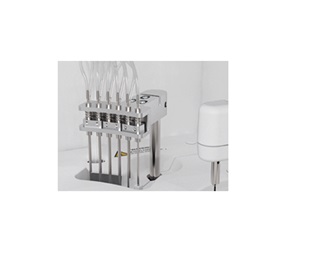

O Auto cleaning system

  • Automatically 6-step wash
  • 2 times repeat wash
  • Hi-tech washing station to ensure
  • accurate result

o Auto mixer, independently

  • Automatically mix reagent and sample in cuvettes
  • Ensure full reaction
  • Automated wash itself
  • Avoid cross-contamination

O Perfect standard diagram

  • Automatic show reaction curve
  • QC result diagram recorder, print available

O Intelligent software

  • Automatic washing cuvette when start test finish test
  • Automatic detect sample& reagent volume
  • Reaction temperature detecting when startup
  • Alarm: automatic alarm of no reagent, no sample, wrong run, out of linearity range etc
  • Automatic re-test sample in next order if no reagent

O Real-time and Dynamic display running status

  • Real-time show the running status
  • Real-time show the status of reagent tray, sample tray, cuvettes
  • Rea-time update the reagent residual volume

Technical Specification

Overall

Performance

Model

ABA-400    (Open system )

Type

Vertical, Discrete, Fully automatic

Throughput

400T/H

Analysis Method

End-point, kinetic, Two-point

Certification

CE, FDA, ISO9001, ISO14001, ISO13485

Sample & Reagent Unit  Sample Positions

120 sample positions

Reagent Positions

90 pcs (With refrigerated function)

Sample Volume

2-30ul,0.1μl step

Reagent Volume

20-300μl,1μl step

Sample& Reagent Probe

Automatic liquid level detecting   ,Collision protection function

Probe internal/external washing , Probe deepth automatic adjustmen

Probe cleaning

Automatic washing both interior and exterior

Reagent tray cooling

Continuous 2℃~8℃ cooling within 24 hours

Reaction Unit Reaction Time

10 minutes

Temperature Control

37±0.1℃,automatic heating

Cuvettes

90 reusable reaction cuvettes

Washing

After finish testing, washing probe wash cuvettes automatically

Optical System Light Source

Halogen-tungsten lamp

Wavelength

340-700nm,8 wavelengths,(4 positions are optional)

Absorbance range

0-4.00Abs

Linear Range

0.0001Abs

Calibration and QC Calibration

Linear/nonlinear, one point, multi-point (Max 8 points)

Quality Control

QC plot automatically depict the function condition, show the QC results

Software Intelligent software

Automatic washing cuvette when start test finish test Automatic detect sample& reagent volume Reaction temperature detecting when startup

Alarm

Automatic alarm of no reagent,no sample,wrong run,out of linearity range etc, Automatic re-test sample in next order after no reagent

Software

Windows 7,Windows 8 or above, windows XP

Others Power Supply

AC110/220V,±10%, 50/60Hz,1000VA

Package Size(W*D*H)

1220*1340*890mm

Gross Weight

200kg
