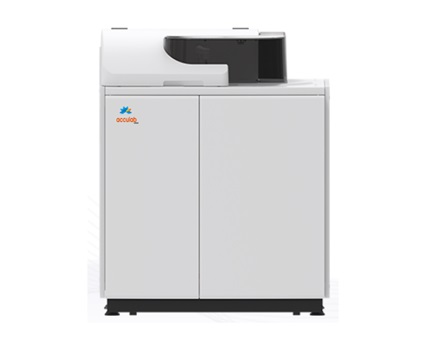

ABA-300C Close System / ABA-300 Open system

QUICK OVERVIEW

Product Code: 657
Brand: Biochemical Analyzer – Fully Automatic

ABA-300C Close System / ABA-300 Open system


Share this product on social networks

  1. Fully automated, Discrete, Random access
  2. Total open setting of items, supported different reagents from different countries.
  3. Reversed optics and  photo sensor make sure the precision of detection results.
  4. Microsring injector  from Germany assures the veracity of a trace of samples, sample step by 0.1 UL, reagent step by1 UL
  5. 24 hour non-stop working, convenient emergency function with inserting emergency at random.
  6. Implementing analysis of ultra-trace reaction solution to 180 UL, and saving more reagents.
  7. Discrete cuvette, preventing from cross-infection, and be washed and reused, making sure accurate result and save cost.
  8. Perfect self-detection function makes sure the analyzer in order and accurate result.
  9. Software is easy to learn and use. And test report can be printed.
  10. Perfect function of quality control management is convenient for users to manage the clinical test result.
  11. Detecting in the whole reaction process with reaction curve, convenient for users to monitor thoroughly and scientifically analyze the detection data.
  12. Supporting software can implement the function of detecting surplus reagent through liquid level induction of reagent probe.

TECHNICAL SPECIFICATION

Overall

Performance

Model

ABA-300C CLOSE SYSTEM
ABA-300 OPEN SYSTEN

Type

Discrete, fully automatic

Throughput

300T/H

Analysis Method

End-point, Fixed-time,Rate

Certification

CE, FDA, ISO9001, ISO14001, ISO13485



Sample unit

Sample Settings

60 sample positions, including calibration, quality control and emergency.

Sample Volume

2ul ~70ul (0.1ul stepping)

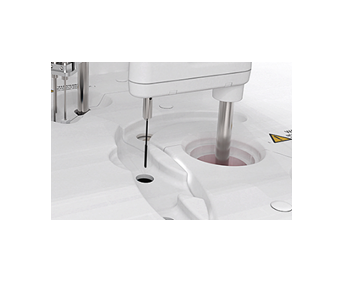

Sample Probe

Teflon coating probe, with liquid level sensor, withanti-collision function

Probe cleaning

Automatic washing both interior and exterior

Analysis Items

Analyzing maximally 45 items at the same time

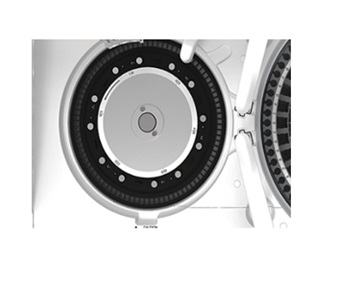

Reagent unit

Reagent Position

45 low-temperature refrigerated reagent position

Reagent Volume

20~350ul (1ul stepping), supporting reagent from different brand

Temperature Control

Continuous 2C~8Ccooling within 24 hours

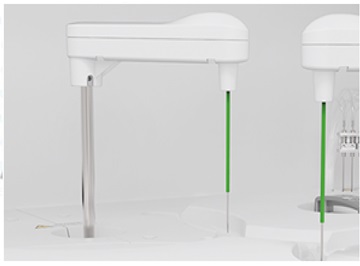

Reagent Probe

Teflon coating probe, with liquid level sensor,withanti-collision function.

Probe cleaning

Automatic washing both interior and exterior

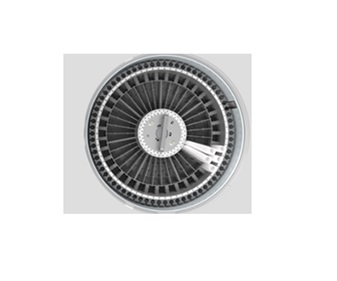

Reaction unit Temperature Control

37C±0.1C,with online software monitor the temperature

Cuvettes

120 reusable reaction cuvettes (optical path length 6mm)

Mixer

After injecting reagent and sample, blending immediately

Washing

Automatic water cleaning and drying system

System Adjustment

System can record the blank value and get more accurate result by deducting

blank base value of each cuvette

Optical System Light Source

12V/30W halogen-tungsten lamp, 2000 hours

Receiver

8 precision photo receivers

Wavelength Range

340,405,450,510,546,578,630,700mm

Linear Range

0.000~2.500Abs

Calibration and QC Calibration

One-point,two-point,multi-point,factor

Quality Control

Inserting quality control at random,with reaction curve can check each test items clearly.



Software

Emergency Function

Emergency sample can be placed in the sample tray at any time

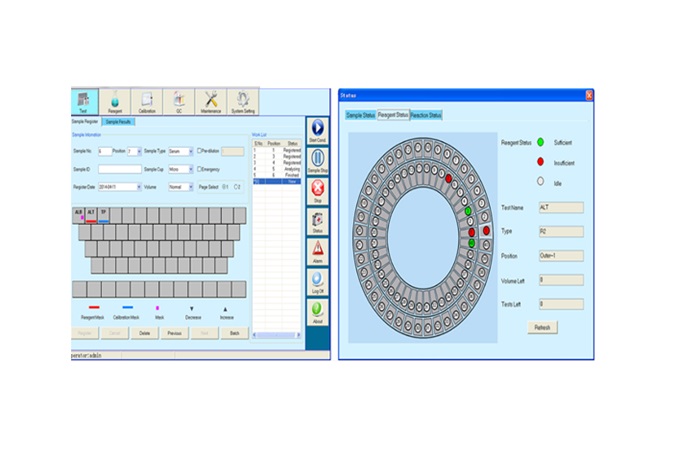

Software

Windows 7 /8/10 or above, LISsystem available.

Data Processing

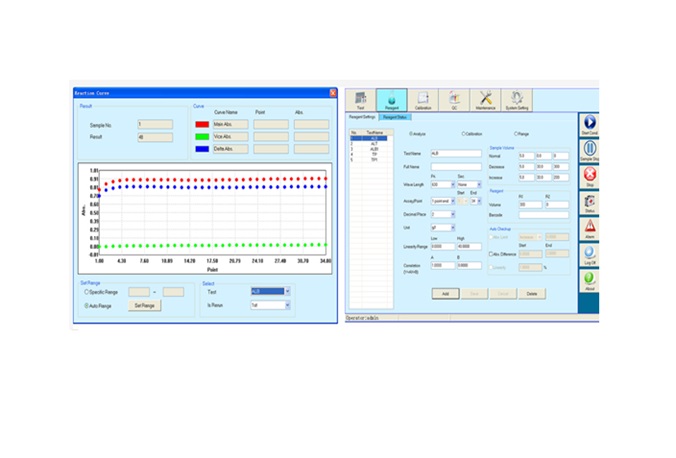

Having reaction curve detection and data display function in the whole process

Others Power Supply

110/220V+10%, 60/50Hz

External Size(W*D*H)

1020mm*830mm*1200mm

Package Size(W*D*H)

1168*908*1288mm

Net/GrossWeight

130kg/185kg
